video#

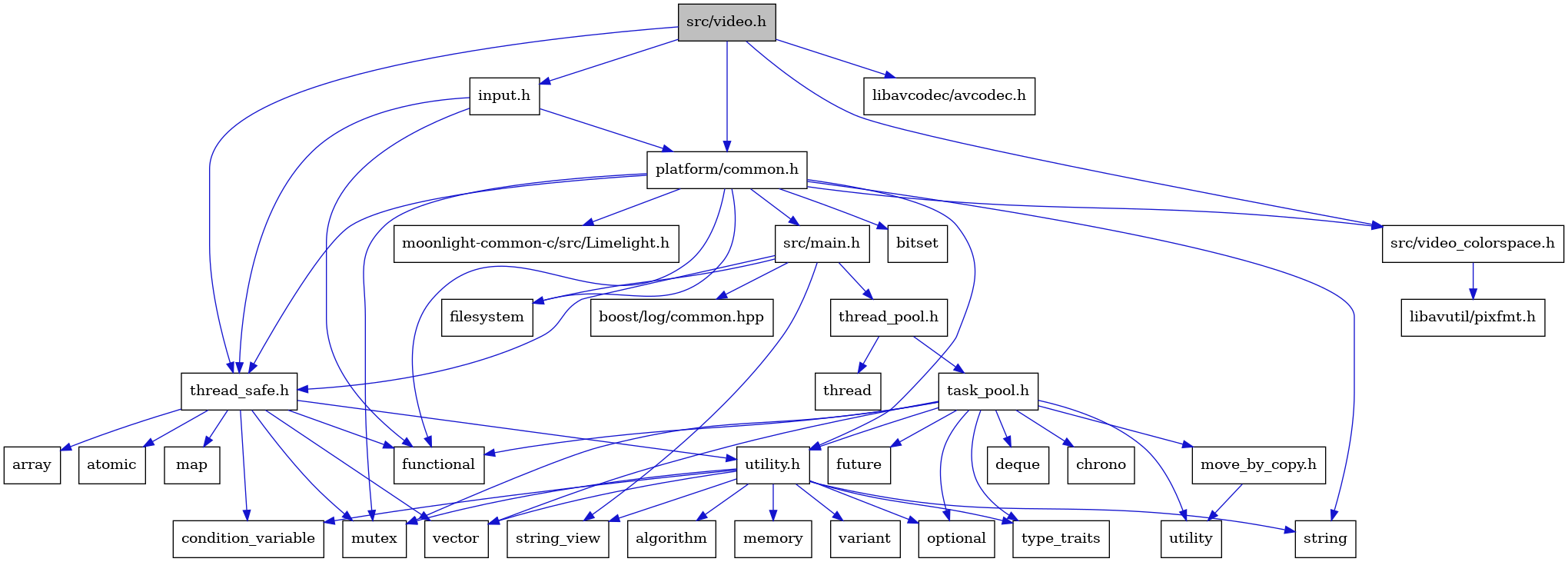

Include dependency graph for video.h:

digraph { graph [bgcolor="#00000000"] node [shape=rectangle style=filled fillcolor="#FFFFFF" font=Helvetica padding=2] edge [color="#1414CE"] "30" [label="atomic" tooltip="atomic"] "3" [label="functional" tooltip="functional"] "6" [label="filesystem" tooltip="filesystem"] "13" [label="task_pool.h" tooltip="task_pool.h"] "26" [label="variant" tooltip="variant"] "28" [label="thread_safe.h" tooltip="thread_safe.h"] "8" [label="string" tooltip="string"] "22" [label="utility.h" tooltip="utility.h"] "31" [label="map" tooltip="map"] "2" [label="input.h" tooltip="input.h"] "21" [label="move_by_copy.h" tooltip="move_by_copy.h"] "4" [label="platform/common.h" tooltip="platform/common.h"] "24" [label="condition_variable" tooltip="condition_variable"] "10" [label="string_view" tooltip="string_view"] "5" [label="bitset" tooltip="bitset"] "33" [label="libavutil/pixfmt.h" tooltip="libavutil/pixfmt.h"] "16" [label="future" tooltip="future"] "17" [label="optional" tooltip="optional"] "32" [label="src/video_colorspace.h" tooltip="src/video_colorspace.h"] "20" [label="vector" tooltip="vector"] "12" [label="thread_pool.h" tooltip="thread_pool.h"] "19" [label="utility" tooltip="utility"] "29" [label="array" tooltip="array"] "35" [label="libavcodec/avcodec.h" tooltip="libavcodec/avcodec.h"] "1" [label="src/video.h" tooltip="src/video.h" fillcolor="#BFBFBF"] "15" [label="deque" tooltip="deque"] "7" [label="mutex" tooltip="mutex"] "14" [label="chrono" tooltip="chrono"] "27" [label="thread" tooltip="thread"] "18" [label="type_traits" tooltip="type_traits"] "34" [label="moonlight-common-c/src/Limelight.h" tooltip="moonlight-common-c/src/Limelight.h"] "11" [label="boost/log/common.hpp" tooltip="boost/log/common.hpp"] "23" [label="algorithm" tooltip="algorithm"] "9" [label="src/main.h" tooltip="src/main.h"] "25" [label="memory" tooltip="memory"] "13" -> "14" [dir=forward tooltip="include"] "13" -> "15" [dir=forward tooltip="include"] "13" -> "3" [dir=forward tooltip="include"] "13" -> "16" [dir=forward tooltip="include"] "13" -> "7" [dir=forward tooltip="include"] "13" -> "17" [dir=forward tooltip="include"] "13" -> "18" [dir=forward tooltip="include"] "13" -> "19" [dir=forward tooltip="include"] "13" -> "20" [dir=forward tooltip="include"] "13" -> "21" [dir=forward tooltip="include"] "13" -> "22" [dir=forward tooltip="include"] "28" -> "29" [dir=forward tooltip="include"] "28" -> "30" [dir=forward tooltip="include"] "28" -> "24" [dir=forward tooltip="include"] "28" -> "3" [dir=forward tooltip="include"] "28" -> "31" [dir=forward tooltip="include"] "28" -> "7" [dir=forward tooltip="include"] "28" -> "20" [dir=forward tooltip="include"] "28" -> "22" [dir=forward tooltip="include"] "22" -> "23" [dir=forward tooltip="include"] "22" -> "24" [dir=forward tooltip="include"] "22" -> "25" [dir=forward tooltip="include"] "22" -> "7" [dir=forward tooltip="include"] "22" -> "17" [dir=forward tooltip="include"] "22" -> "8" [dir=forward tooltip="include"] "22" -> "10" [dir=forward tooltip="include"] "22" -> "18" [dir=forward tooltip="include"] "22" -> "26" [dir=forward tooltip="include"] "22" -> "20" [dir=forward tooltip="include"] "2" -> "3" [dir=forward tooltip="include"] "2" -> "4" [dir=forward tooltip="include"] "2" -> "28" [dir=forward tooltip="include"] "21" -> "19" [dir=forward tooltip="include"] "4" -> "5" [dir=forward tooltip="include"] "4" -> "6" [dir=forward tooltip="include"] "4" -> "3" [dir=forward tooltip="include"] "4" -> "7" [dir=forward tooltip="include"] "4" -> "8" [dir=forward tooltip="include"] "4" -> "9" [dir=forward tooltip="include"] "4" -> "28" [dir=forward tooltip="include"] "4" -> "22" [dir=forward tooltip="include"] "4" -> "32" [dir=forward tooltip="include"] "4" -> "34" [dir=forward tooltip="include"] "32" -> "33" [dir=forward tooltip="include"] "12" -> "13" [dir=forward tooltip="include"] "12" -> "27" [dir=forward tooltip="include"] "1" -> "2" [dir=forward tooltip="include"] "1" -> "4" [dir=forward tooltip="include"] "1" -> "28" [dir=forward tooltip="include"] "1" -> "32" [dir=forward tooltip="include"] "1" -> "35" [dir=forward tooltip="include"] "9" -> "6" [dir=forward tooltip="include"] "9" -> "10" [dir=forward tooltip="include"] "9" -> "11" [dir=forward tooltip="include"] "9" -> "12" [dir=forward tooltip="include"] "9" -> "28" [dir=forward tooltip="include"] }

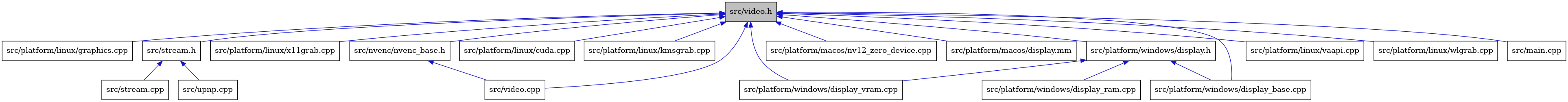

This graph shows which files directly or indirectly include video.h:

digraph { graph [bgcolor="#00000000"] node [shape=rectangle style=filled fillcolor="#FFFFFF" font=Helvetica padding=2] edge [color="#1414CE"] "5" [label="src/platform/linux/graphics.cpp" tooltip="src/platform/linux/graphics.cpp"] "4" [label="src/video.cpp" tooltip="src/video.cpp"] "10" [label="src/platform/linux/x11grab.cpp" tooltip="src/platform/linux/x11grab.cpp"] "17" [label="src/stream.h" tooltip="src/stream.h"] "6" [label="src/platform/linux/cuda.cpp" tooltip="src/platform/linux/cuda.cpp"] "7" [label="src/platform/linux/kmsgrab.cpp" tooltip="src/platform/linux/kmsgrab.cpp"] "3" [label="src/nvenc/nvenc_base.h" tooltip="src/nvenc/nvenc_base.h"] "13" [label="src/platform/windows/display.h" tooltip="src/platform/windows/display.h"] "12" [label="src/platform/macos/nv12_zero_device.cpp" tooltip="src/platform/macos/nv12_zero_device.cpp"] "11" [label="src/platform/macos/display.mm" tooltip="src/platform/macos/display.mm"] "16" [label="src/platform/windows/display_vram.cpp" tooltip="src/platform/windows/display_vram.cpp"] "19" [label="src/upnp.cpp" tooltip="src/upnp.cpp"] "14" [label="src/platform/windows/display_base.cpp" tooltip="src/platform/windows/display_base.cpp"] "8" [label="src/platform/linux/vaapi.cpp" tooltip="src/platform/linux/vaapi.cpp"] "9" [label="src/platform/linux/wlgrab.cpp" tooltip="src/platform/linux/wlgrab.cpp"] "1" [label="src/video.h" tooltip="src/video.h" fillcolor="#BFBFBF"] "15" [label="src/platform/windows/display_ram.cpp" tooltip="src/platform/windows/display_ram.cpp"] "2" [label="src/main.cpp" tooltip="src/main.cpp"] "18" [label="src/stream.cpp" tooltip="src/stream.cpp"] "17" -> "18" [dir=back tooltip="include"] "17" -> "19" [dir=back tooltip="include"] "3" -> "4" [dir=back tooltip="include"] "13" -> "14" [dir=back tooltip="include"] "13" -> "15" [dir=back tooltip="include"] "13" -> "16" [dir=back tooltip="include"] "1" -> "2" [dir=back tooltip="include"] "1" -> "3" [dir=back tooltip="include"] "1" -> "5" [dir=back tooltip="include"] "1" -> "6" [dir=back tooltip="include"] "1" -> "7" [dir=back tooltip="include"] "1" -> "8" [dir=back tooltip="include"] "1" -> "9" [dir=back tooltip="include"] "1" -> "10" [dir=back tooltip="include"] "1" -> "11" [dir=back tooltip="include"] "1" -> "12" [dir=back tooltip="include"] "1" -> "13" [dir=back tooltip="include"] "1" -> "14" [dir=back tooltip="include"] "1" -> "16" [dir=back tooltip="include"] "1" -> "17" [dir=back tooltip="include"] "1" -> "4" [dir=back tooltip="include"] }

todo

namespace video#

Typedefs

using hdr_info_t = std::unique_ptr<hdr_info_raw_t>#
using packet_t = std::unique_ptr<packet_raw_t>#
struct config_t#

Public Members

int bitrate#
int dynamicRange#
int encoderCscMode#
int framerate#
int height#
int numRefFrames#
int slicesPerFrame#
int videoFormat#
int width#
struct hdr_info_raw_t#

Public Functions

inline explicit hdr_info_raw_t(bool enabled)#
inline explicit hdr_info_raw_t(bool enabled, const SS_HDR_METADATA &metadata)#

Public Members

bool enabled#
SS_HDR_METADATA metadata#
struct packet_raw_avcodec : public video::packet_raw_t#

Inheritence diagram for video::packet_raw_avcodec:

digraph { graph [bgcolor="#00000000"] node [shape=rectangle style=filled fillcolor="#FFFFFF" font=Helvetica padding=2] edge [color="#1414CE"] "1" [label="video::packet_raw_avcodec" tooltip="video::packet_raw_avcodec" fillcolor="#BFBFBF"] "2" [label="video::packet_raw_t" tooltip="video::packet_raw_t"] "1" -> "2" [dir=forward tooltip="public-inheritance"] }

Collaboration diagram for video::packet_raw_avcodec:

digraph { graph [bgcolor="#00000000"] node [shape=rectangle style=filled fillcolor="#FFFFFF" font=Helvetica padding=2] edge [color="#1414CE"] "1" [label="video::packet_raw_avcodec" tooltip="video::packet_raw_avcodec" fillcolor="#BFBFBF"] "2" [label="video::packet_raw_t" tooltip="video::packet_raw_t"] "1" -> "2" [dir=forward tooltip="public-inheritance"] }

Public Functions

inline virtual uint8_t *data() override#
inline virtual size_t data_size() override#
inline virtual int64_t frame_index() override#
inline virtual bool is_idr() override#
inline packet_raw_avcodec()#
inline ~packet_raw_avcodec()#

Public Members

AVPacket *av_packet#
struct packet_raw_generic : public video::packet_raw_t#

Inheritence diagram for video::packet_raw_generic:

digraph { graph [bgcolor="#00000000"] node [shape=rectangle style=filled fillcolor="#FFFFFF" font=Helvetica padding=2] edge [color="#1414CE"] "1" [label="video::packet_raw_generic" tooltip="video::packet_raw_generic" fillcolor="#BFBFBF"] "2" [label="video::packet_raw_t" tooltip="video::packet_raw_t"] "1" -> "2" [dir=forward tooltip="public-inheritance"] }

Collaboration diagram for video::packet_raw_generic:

digraph { graph [bgcolor="#00000000"] node [shape=rectangle style=filled fillcolor="#FFFFFF" font=Helvetica padding=2] edge [color="#1414CE"] "1" [label="video::packet_raw_generic" tooltip="video::packet_raw_generic" fillcolor="#BFBFBF"] "2" [label="video::packet_raw_t" tooltip="video::packet_raw_t"] "1" -> "2" [dir=forward tooltip="public-inheritance"] }

Public Functions

inline virtual uint8_t *data() override#
inline virtual size_t data_size() override#
inline virtual int64_t frame_index() override#
inline virtual bool is_idr() override#
inline packet_raw_generic(std::vector<uint8_t> &&frame_data, int64_t frame_index, bool idr)#

Public Members

std::vector<uint8_t> frame_data#
bool idr#
int64_t index#
struct packet_raw_t#

Inheritence diagram for video::packet_raw_t:

digraph { graph [bgcolor="#00000000"] node [shape=rectangle style=filled fillcolor="#FFFFFF" font=Helvetica padding=2] edge [color="#1414CE"] "3" [label="video::packet_raw_generic" tooltip="video::packet_raw_generic"] "2" [label="video::packet_raw_avcodec" tooltip="video::packet_raw_avcodec"] "1" [label="video::packet_raw_t" tooltip="video::packet_raw_t" fillcolor="#BFBFBF"] "3" -> "1" [dir=forward tooltip="public-inheritance"] "2" -> "1" [dir=forward tooltip="public-inheritance"] }

Subclassed by video::packet_raw_avcodec, video::packet_raw_generic

Public Functions

virtual uint8_t *data() = 0#
virtual size_t data_size() = 0#
virtual int64_t frame_index() = 0#
virtual bool is_idr() = 0#
virtual ~packet_raw_t() = default#

Public Members

bool after_ref_frame_invalidation = false#
void *channel_data = nullptr#
std::optional<std::chrono::steady_clock::time_point> frame_timestamp#
std::vector<replace_t> *replacements = nullptr#
struct replace_t#

Public Functions

replace_t &operator=(replace_t&&) noexcept = default#
replace_t(replace_t&&) noexcept = default#
inline replace_t(std::string_view old, std::string_view _new) noexcept#

Public Members

std::string_view _new#
std::string_view old#
